PT301 Datasheet

Description

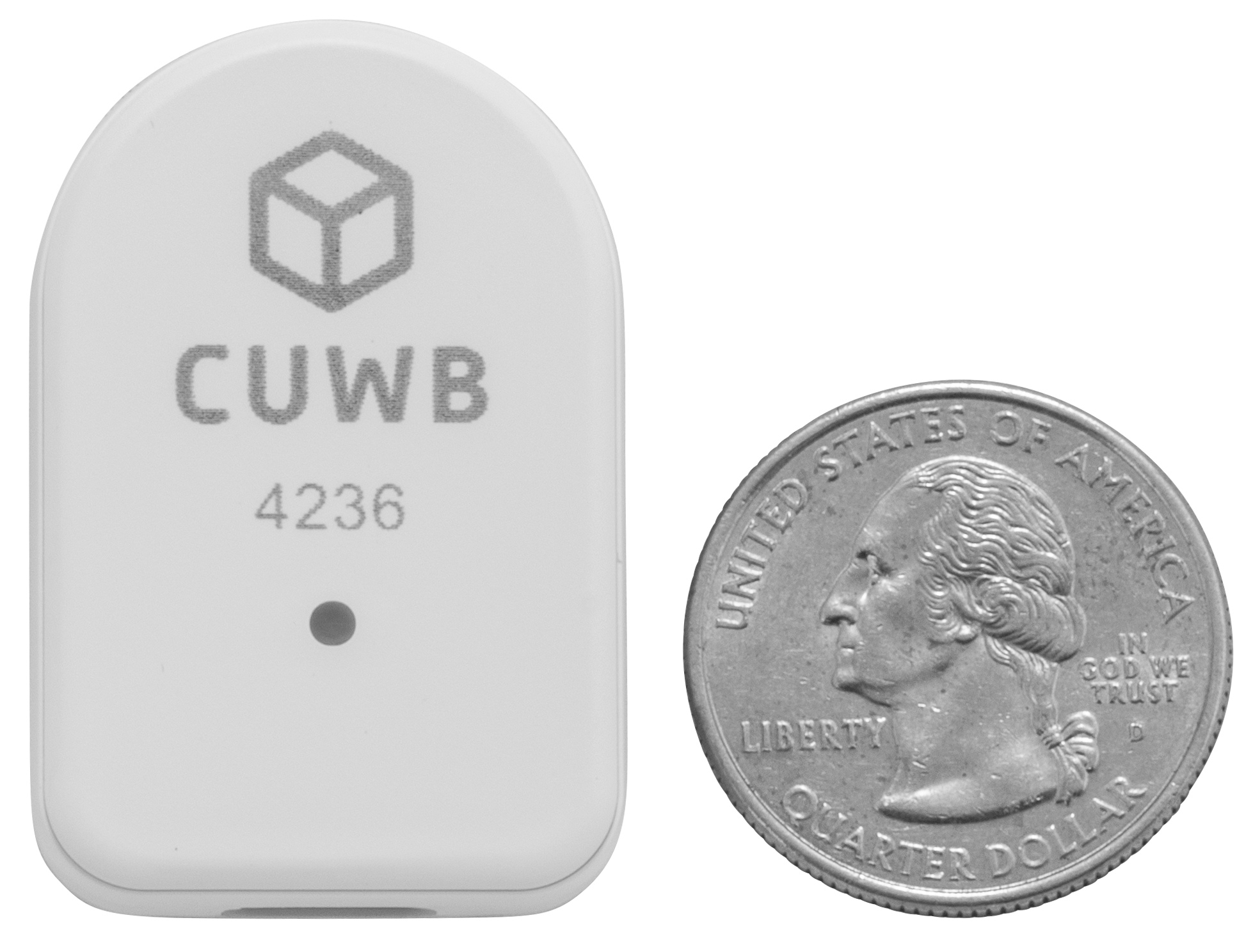

PT301

The PT301 is a mini, rechargeable Ultra-Wideband (UWB) tag designed for use with Ciholas UWB (CUWB) Real-Time Location Systems (RTLS). In a CUWB RTLS deployment the PT301 operates as a mobile, trackable device that can be attached to personnel, equipment, and assets. Featuring an integrated rechargeable battery, the PT301 is compact, lightweight, and designed for easy mounting on a wide variety of objects.







Features

  • Operates with Ciholas CUWB System
  • Ultra-Wideband Radio
    • Supports UWB Channels 5 and Channel 9
    • Data rate 6.8Mbps
  • Integrated Radio Frequency (RF)
    • Omni-directional UWB antenna
    • Variable beacon rates
    • Built-in Low-Noise Amplifier (LNA)
    • Long RF range
  • Status & Control
    • Tri-Color LED Indicator
    • Wake-on-Shake
    • Firmware updates by UWB or USB
  • Power & Connectivity
    • Integrated 150mAh Lithium Ion Rechargeable Battery
    • USB charging and data connection:
      • Fully compliant with USB 2.0 specification
      • Standard USB Type-C Receptacle
    • Low Power & Long Battery Life
  • Certifications
    • FCC Certified in the United States
    • CE Marking in the European Union - Pending
    • ISED Certified in Canada - Pending
    • MIC Certified in Japan - Pending
    • RoHs
  • Mechanical
    • IPX7 Rating
    • Mounting Accessories - Coming Soon

Ordering

The PT301 maximum beacon rate is specified for each selected model. PT301 devices can be configured to beacon at any frequency up-to and including the maximum rate. The PT301 is region-locked at purchase to ensure compliance with local regulatory requirements. See regulatory compliance for supported regions and compliance statements.

Available from the Ciholas Webshop

Electrical

Ratings

Parameter Description Min. Typ. Max. Units
Vc Charging Voltage 3.4 5.0 5.5 V
Ac Charging Current   100   mA
B Battery Capacity - UN38.3 Approved - Lithium-Ion   150   mAh
Bcharge_time Battery Charge Time   2   h
T Operational Temperature -20   60 °C
Tcharging Charging Temperature 0   45 °C

1. See CUWBNet Join for additional information.

RF Characteristics

Channel1 Center Frequency Bandwidth Typical Distance2
5 6.4896 GHz 499.2 MHz 100 meters
9 7.9872 GHz 499.2 MHz 70 meters

1. Where channel usage is allowed. Not all channels are supported in every regulatory region.
2. In clear Line-of-Sight conditions.

Battery Life Examples

Operational mode sets the foundation of power consumption for the PT301. PT301 power use is highly dependant on usage and system configuration. Tags configured with beacon rates higher than listed will draw more power.

The following chart depicts the typical battery runtime in 25℃ conditions without the use of Wake-on-Shake features, uses 0.1 Hz Command Rates, LEDs disabled, and no additional user data.

UWB Channel Beacon Rate (Hz) MultiRange Typical Runtime (Days) MultiTime Typical Runtime (Days)
5 0.1 200 230
5 1 45 105
5 10 5 20
5 100 0.5 2
9 0.1 180 225
9 1 40 100
9 10 4 20
9 100 0.5 2

Mechanical

Parameter Description Min. Typ. Max. Units
Unit Mass ABS Plastic w/ Flame Retardant - UL94 V0   9.6   g
Drop Rating     2   m
Ingress Protection IPX7   1   m

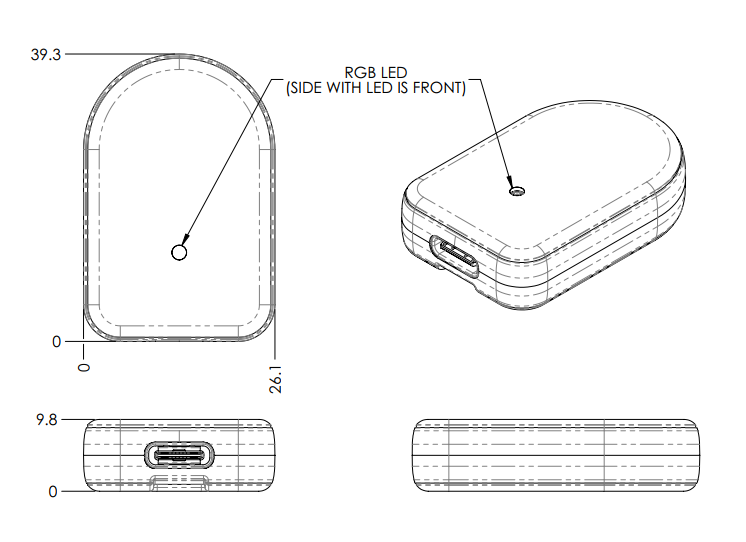

Dimension Drawing

All dimensions are in millimeters unless otherwise stated.

PT301 Dimensions

Downloadable Models

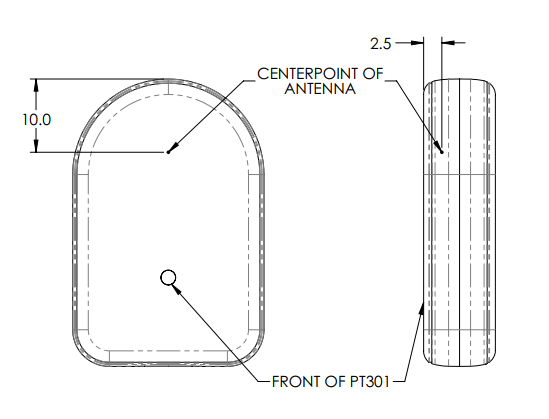

Antenna Center

The following drawing indicates the center of the antenna for the PT301. For best tracking performance, attach the tag such that the RGB LED faces away from the object.

Operation

Charging and Battery Monitoring

The PT301 uses a USB Type-C connector for both charging and for optional local communication. To charge the battery, connect the device to a USB power source via the Type-C USB connector.

Whenever USB Power is applied to a PT301, the device will reset.

Battery Percentage reporting is available on the PT301 in the CUWB Viewer.

For battery safety, the PT301 will enter ship mode when the battery becomes too depleted. To recover and exit ship mode, charge the tag fully.

Ship Mode

The PT301 is shipped in a low-power ‘ship mode’ to protect the Li-Ion battery during storage and transport. When a PT301 is in ship mode, it is not receiving power from the battery. The PT301 will not search for a CUWBNet or use it’s LED indicator.

Exiting Ship Mode

To exit ship mode, plug the PT301 into a powered USB port. Applying charge power will wake the device, and it will begin searching for CUWBNets in the area.

For first-time operation, the PT301 must be connected to a powered USB port to turn on and exit ship mode. This will cause the PT301 to automatically attempt to join any CUWBNet that is within range of its UWB transceiver.

Entering Ship Mode

The PT301 can be placed back into Ship Mode by using the Device Manager in the CUWB Manager. This will disconnect the battery internally for long term storage or shipping the PT301.

The battery should be partially charged (~50-60%) when using Ship Mode.

Communication

When connected to a USB host the PT301 will enumerate as a USB device with the VID:PID of 0x0483:0x5740 and USB speed grade Full Speed (12 MBit/s).

To connect with PT301 and configure them to be a wired device in a CUWBNet, see CUWB USB Driver for additional information.

The PT301 will communicate over USB with the Ciholas Serial Protocol. For additional information on serial packet formatting, see Ciholas Serial Protocol.

Firmware Updates

The PT301 can be updated with new firmware releases by using the CUWB Manager. The PT301 supports both Over-the-Air (OTA) by UWB and wired updates by USB. See Firmware Updates for instructions. The latest firmware packages are available on the Software Downloads page.

CUWBNet Operation and Configuration

CUWBNet Join

After exiting ship mode, the PT301 automatically attempts to join any CUWBNet that is within range of its UWB transceiver. To conserve energy, the device listens on a periodic schedule. Initially, the time between searches is low to allow for a fast join.

If no CUWBNet is found, the period between searches increases over time. Eventually, if no CUWBNet is detected, the device will utilize the slowest search period. The slowest search period is once every 640 seconds. See CUWBNet Search in the CUWB Manager Manual for additional information on search periods.

The search period described above is reset any time charging power is provided to the PT301. If a device is taking longer than expected to join, plugging it into a powered USB port will reset the listen period and allow it to join more quickly.

Wake-on-Shake will also modify the listen period for tags. See Wake-on-Shake section below.

CUWB Configuration

PT301 devices must be added to the CUWB configuration in order to join a CUWBNet and begin beaconing. Details regarding PT301 setup and configuration for the CUWB RTLS can be found in the CUWB Manager.

Wake on Shake

The PT301 supports Wake-on-Shake CUWBNet Search. Wake-on shake is enabled by default and allows the device to enter low-power sleep when not participating in a CUWBNet. When the device is steady and no motion is detected, the device will enter a low-power mode searching for CUWBNets infrequently. Any time the PT301 detects motion, it will exit the low-power mode and search for CUWBNets at a much higher rate.

When plugged into USB power, the PT301 will hunt for a CUWBNet every 5 seconds regardless of motion.

The Wake-on-Shake feature is adjustable when the PT301 is active on a CUWBNet. For detailed information on this feature and its settings, see Wake-on-Shake CUWBNet Search.

LED Indication

The PT301 has a tri-color (RGB) LED for conveying device state to users. In normal operation1 the device state can be determined using the table below:

Status Battery Color ON Time Period
ON CUWBNet <20% Red 10 ms 1.0 s
ON CUWBNet 20-100% Green 10 ms 1.0 s
OFF CUWBNet <20% Red 10 ms 10.0 s
OFF CUWBNet2 20-100% Green 10 ms 10.0 s
Charging 100% Green FULL N/A
Charging 75-99% Magenta 900 ms 1.0 s
Charging 50-74% Magenta 500 ms 1.0 s
Charging 0-49% Magenta 100 ms 1.0 s
Power On Reset3 N/A Blue 500 ms N/A
USB Enumeration4 N/A White 0.25-5.0 s N/A

1. This table denotes normal LED operation. The CUWB Manager can be configured to show different patterns on the LEDs.
2. Off CUWBNet behaviors are a double green blink, and will reduce in frequency for power savings the longer the device is off of the CUWBNet. This may be as long as 640 seconds if wake-on-shake features are enabled.
3. Power On Reset (POR) occurs only on system reset. This will happen when on powered USB cable insertion, on reboot after firmware update, and when the device resets due to system watchdog. If a device remains on with a solid blue led, the firmware is invalid.
4. USB Enumeration time may vary.

The LED on the PT301 can be completely disabled. See the CUWB Manager Reference Manual for configuration details.

Error Handling

The RGB LED also conveys error states to the user. An error is indicated by a 500 ms red flash followed by a color sequence.

The following color sequences are used to decode error states:

Color Sequence Code Description
Red — White-White-White 0 UWB IC Communication Error
Red — White-White-Magenta 1 Device Over Temperature (60℃)
Red — White-White-Blue 2 Device Under Temperature (0℃)
Red — White-White-Green 3 Accelerometer IC Communication Error
Red — Magenta-White-White 16 Battery Charger Under Voltage Protection
Red — Magenta-Magenta-Magenta 21 Battery Charger Over Current Protection
Red — Magenta-Blue-Blue 26 Charger Input Over Voltage
Red — Magenta-Green-Green 31 Battery Not Detected
Red — Blue-White-White 32 Hard Fault
Red — Blue-White-Magenta 33 Watchdog

[CODE 0] - UWB IC Communication Error

This indicates that the PT301 firmware is unable to communicate with the UWB transceiver. Plug PT301 into a USB power to cause a device reset. If the problem persists please contact Ciholas for support.

[CODE 1] - Device Over Temperature (60℃)

The PT301 will indicate an over temperature error when the internal temperature has reached 60℃. This is potentially damaging to the device and battery. The device should be moved to a room temperature area and allowed to cool down before continued use.

[CODE 2] - Device Under Temperature (0℃)

The PT301 will indicate an under temperature error when the internal temperature has reached 0℃. This is potentially damaging to the device and battery. The device should be moved to a room temperature area and allowed to warm up before continued use.

[CODE 3] - Accelerometer IC Communication Error

This indicates that the PT301 firmware is unable to communicate with the accelerometer. Plug PT301 into USB power to cause a device reset. If the problem persists please contact Ciholas for support.

[CODE 16] - Battery Charger Under Voltage

This indicates that the PT301 battery charger under voltage protection has triggered. Plug PT301 into USB power and charge the battery. If the problem persists please contact Ciholas for support.

[CODE 21] - Battery Charger Over Current

This indicates that the PT301 battery charger over current protection has triggered. If the problem persists please contact Ciholas for support.

[CODE 26] - Charger Input Over Voltage

This indicates that the PT301 firmware has detected that the input voltage is too high. Unplug the device and verify USB power levels from the power source. This can potentially be damaging to the device and battery. If the problem persists please contact Ciholas for support.

[CODE 31] - Battery Not Detected

This indicates that the PT301 firmware is unable to detect the presence of the battery. If the problem persists please contact Ciholas for support.

[CODE 32] - Hard Fault

If the problem persists please contact Ciholas for support.

[CODE 33] - Watchdog

If the problem persists please contact Ciholas for support.

Regulatory Compliance

The regulatory certification of the PT301 is selected at time of purchase. The device must only be used where the regulatory certification allows and must be operated in conformance with the regulatory limitations.

Federal Communications Commission (FCC) - USA

FCC ID: 2ALIR-PT301

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures:

  • Reorient or relocate the receiving antenna.
  • Increase the separation between the equipment and receiver.
  • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
  • Consult the dealer or an experienced radio/TV technician for help.

Changes or modifications not expressly approved by Ciholas, Inc. can void your authority to operate this equipment under Federal Communications Commission rules.

Operation on board an aircraft, ship, or a satellite is prohibited. Devices operating under this section may not be employed for the operation of toys (15.521(a)).

The use of a fixed outdoor infrastructure is prohibited. A fixed infrastructure includes antennas mounted on outdoor structures, e.g., antennas mounted on the outside of a building or on a telephone pole.

UWB devices operating under the provisions of 15.519 may operate indoors or outdoors.

Radiation Exposure Statement: The device has been found to be exempt from SAR under KDB 447498 D01 v06 Section 4.3.1. This device may be used in an uncontrolled environment.

Innovation, Science and Economic Development (ISED) - Canada

Pending final certification

European Conformity (CE) - EU

Pending final certification

Ministry of Internal Affairs and Communications (MIC) - Japan

Pending final certification

Product Warnings


  • Before working or installing electrical equipment, be aware of the hazards involved with electrical circuitry and be familiar with standard practices for preventing accidents.
  • This product contains a Li-Ion rechargeable battery. Damage can occur to Li-Ion batteries that are left discharged for extended periods of time. To reduce risk, ensure the device is regularly charged and store it with a partially charged battery (50-60%) in ship mode.

  • PT301 might present a choking hazard or cause other injury to small children. Keep device away from small children.

  • Usage of this product outside the parameters outlined in the user manual can result in bodily injury and damage to this and other equipment. To prevent this, please follow all instructions in the user manual.
  • Installation of this equipment must comply with all local and national electrical codes.
  • Do not operate any wireless devices near unshielded blasting caps or in an explosive environment unless the devices have been modified to be qualified for such use.

Revision

Version Date Change Description
v5.0.1 2025-10-31 Adding battery life section; Updates to text description; Fixing link errors
v5.0.1 2025-10-20 Preliminary Release: Adding FCC Regulatory Information; Updates to Features, Electrical, Mechanical and Operation sections
v5.0.0 2025-09-15 Initial Preliminary Release
